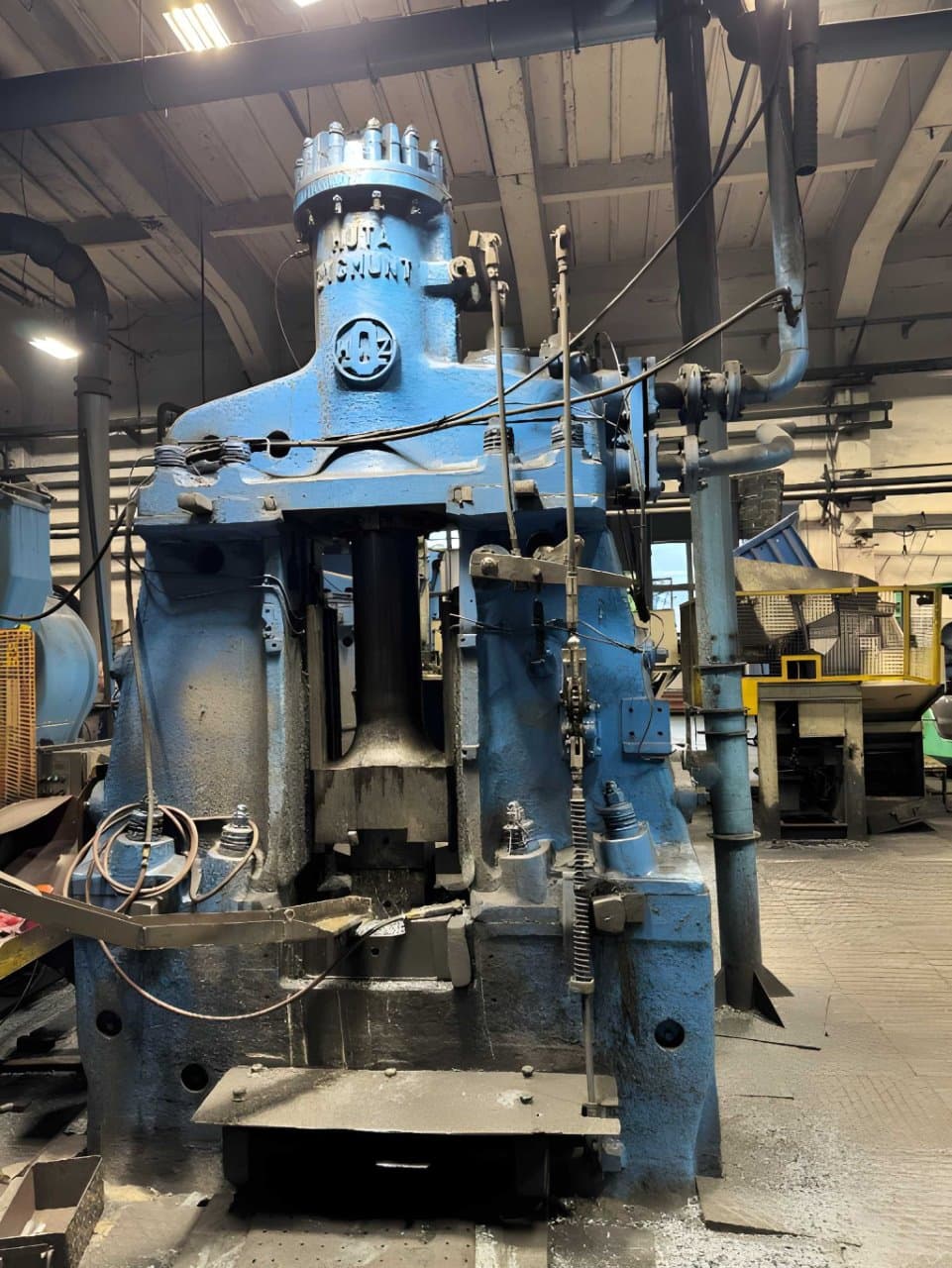

Ковочные молот Huta Zygmunt MPM 1600 B - 1840 кгm
Характеристики (EN) -
Ковочные молот Huta Zygmunt MPM 1600 B - 1840 кгm (ID: 76483)
| Type | Forging hammer |
| Manufacturer | Huta Zygmunt |
| Model | MPM 1600 B |
| Energy blow | 1840 kgm |
| Impact energy | 18.4 kJ |
| BPM | 120 |
| Average compressed air consumption | 380 kg/h |
| Max ram stroke | 750 mm |
| Distance between guides | 418 mm |
| Maximum working zone width | 450 mm |
| Ram weight | 690 kg |
| Maximum top die weight | 200 kg |
| Anvil weight | 12500 kg |
| Minimum die height | 180 mm |
| Total hammer height | 3850 mm |
| Height above floor level | 3440 mm |
| Approximate forging weight | up to 1 kg |
| Total weight | 22 tons |
