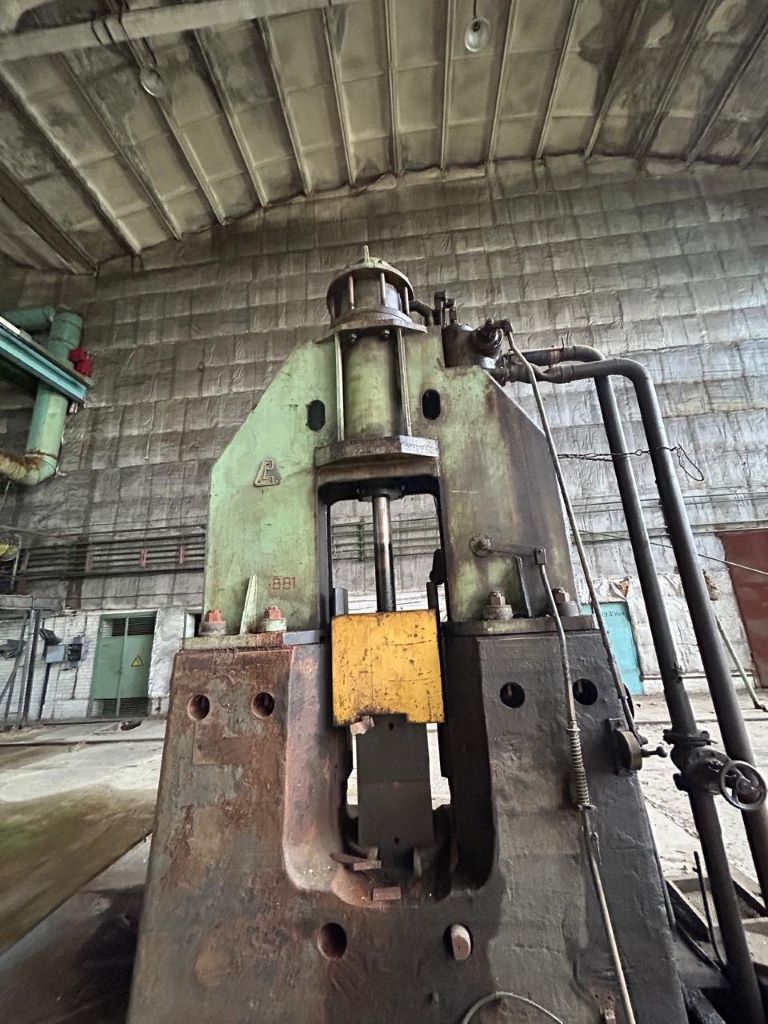

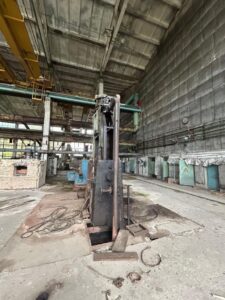

Ковочные молот VoronezhPress K05.501 - 40 кДж
Характеристики (EN) -
Ковочные молот VoronezhPress K05.501 - 40 кДж (ID: 76359)
| Type | Forging hammer |
| Manufacturer | VoronezhPress |
| Model | K05.501 |
| Strike energy | 40 kJ |
| Nominal weight of the falling parts | 1600 kg |
| SPM | 70 |
| Distance between guides in daylight | 520 mm |
| Height of dies without shafts | 220/460 mm |
| Dimensions of die holder front-to-back | 620 mm |
| Diameter of cylinder | 350 mm |
| Diameter of rod | 125 mm |
| Weight of upper die | 85/200 kg |
| Voltage | 360 V, 50 Hz |
| Dimensions | 3000 x 1600 x 4400 mm |
| Weight | 41000 kg |
