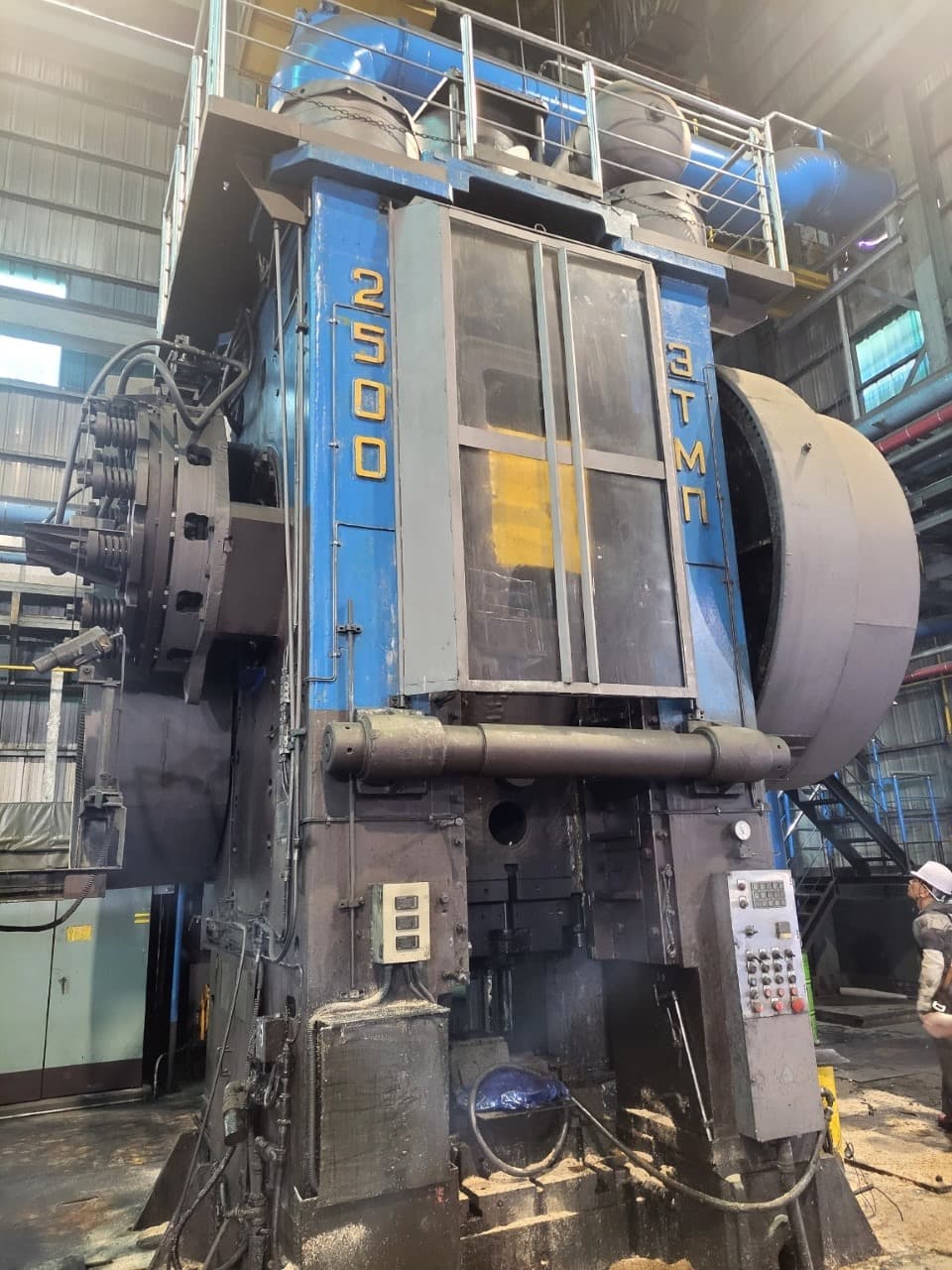

Горячештамповочный пресс TMP Voronezh K8544 - 2500 тонн
Характеристики (EN) -
Горячештамповочный пресс TMP Voronezh K8544 - 2500 тонн (ID: 76406)
| Type | Hot forging press |
| Manufacturer | TMP Voronezh |
| Model | K8544 |
| Nominal force | 25000 kN / 2500 ton |
| Stroke | 350 mm |
| SPM | 60 |
| Shut height | 890 mm |
| Connecting rod length | 1100 mm |
| Table size | 1400 x 1200 mm |
| Slide size | 1120 x 1070 mm |
| Side window dimensions | 890 x 720 mm |
| Distance between uprights | 1320 mm |
| Top ejector stroke | 50 mm |
| Top ejector force | 63 kN |
| Bottom ejector stroke | 50 mm |
| Bottom ejector force | 100 kN |
| Overall dimensions | 5380 x 4680 x 6400 mm |
| Weight | 198000 kg |
